Example 1: Dichotomous and Categorical
use http://www.philender.com/courses/data/apilog, clear
tabulate cred
Full |
Credent |
Teachers, |
Lo Med Hi | Freq. Percent Cum.
------------+-----------------------------------
low | 382 31.83 31.83
medium | 325 27.08 58.92
high | 493 41.08 100.00
------------+-----------------------------------
Total | 1200 100.00
generate hicred = cred==3
tabulate pared hicred
Parents |
Education, | hicred
Lo Med Hi | 0 1 | Total
-----------+----------------------+----------
low | 265 132 | 397
medium | 252 169 | 421
high | 190 192 | 382
-----------+----------------------+----------
Total | 707 493 | 1200
xi3: logit hiqual i.pared i.hicred, nolog
i.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
i.hicred _Ihicred_0-1 (naturally coded; _Ihicred_0 omitted)
Logit estimates Number of obs = 1200
LR chi2(3) = 134.24
Prob > chi2 = 0.0000
Log likelihood = -690.30767 Pseudo R2 = 0.0886
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ipared_2 | .062312 .1610005 0.39 0.699 -.2532432 .3778672
_Ipared_3 | .1184453 .1635732 0.72 0.469 -.2021523 .4390429
_Ihicred_1 | 1.456637 .1319549 11.04 0.000 1.19801 1.715264
_cons | -1.471349 .131101 -11.22 0.000 -1.728302 -1.214396
------------------------------------------------------------------------------

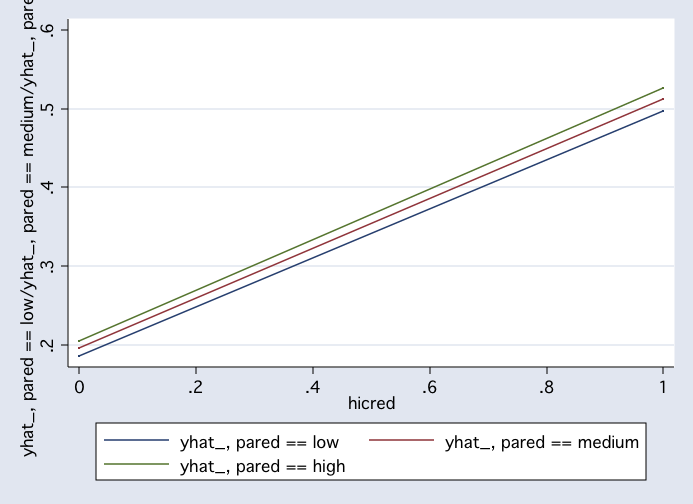

postgr3 hicred, by(pared)
egen sum = sum(hiqual), by(pared hicred)
egen count = count(hiqual), by(pared hicred)
generate diff = count - sum
generate logit = log(sum/diff)
tabdisp pared hicred, cell(logit)
--------------------------------
Parents | hicred
Education | 0 1
----------+---------------------
low | -1.850203 .3991559
medium | -1.207415 -.1541507
high | -1.199417 0
--------------------------------
xi3: logit hiqual i.pared*i.hicred, nolog
i.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
i.hicred _Ihicred_0-1 (naturally coded; _Ihicred_0 omitted)
Logit estimates Number of obs = 1200
LR chi2(5) = 149.43
Prob > chi2 = 0.0000
Log likelihood = -682.71264 Pseudo R2 = 0.0986
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ipared_2 | .6427879 .2335393 2.75 0.006 .1850593 1.100517
_Ipared_3 | .6507861 .2484375 2.62 0.009 .1638576 1.137715
_Ihicred_1 | 2.249359 .2523306 8.91 0.000 1.7548 2.743918
_Ipa2Xhi1 | -1.196095 .3314759 -3.61 0.000 -1.845775 -.5464137
_Ipa3Xhi1 | -1.049942 .3377583 -3.11 0.002 -1.711936 -.3879479
_cons | -1.850203 .1792891 -10.32 0.000 -2.201603 -1.498803
------------------------------------------------------------------------------
describe _Ipared_2 _Ipared_3 _Ihicred_1 _Ipa2Xhi1 _Ipa3Xhi1
storage display value
variable name type format label variable label
-------------------------------------------------------------------------------
_Ipared_2 byte %8.0g pared=2
_Ipared_3 byte %8.0g pared=3
_Ihicred_1 byte %8.0g hicred=1
_Ipa2Xhi1 float %9.0g pared=2*hicred=1
_Ipa3Xhi1 float %9.0g pared=3*hicred=1
test _Ipa2Xhi1 _Ipa3Xhi1
( 1) _Ipa2Xhi1 = 0
( 2) _Ipa3Xhi1 = 0
chi2( 2) = 14.67
Prob > chi2 = 0.0007
test _Ipared_2 _Ipared_3
( 1) _Ipared_2 = 0
( 2) _Ipared_3 = 0
chi2( 2) = 9.30
Prob > chi2 = 0.0095
xi3: logit hiqual r.pared*r.hicred, nolog
r.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
r.hicred _Ihicred_0-1 (naturally coded; _Ihicred_0 omitted)
Logit estimates Number of obs = 1200
LR chi2(5) = 149.43
Prob > chi2 = 0.0000
Log likelihood = -682.71264 Pseudo R2 = 0.0986
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ipared_2 | .0447406 .165738 0.27 0.787 -.2800998 .3695811
_Ipared_3 | .1034447 .139534 0.74 0.458 -.1700369 .3769264
_Ihicred_1 | 1.50068 .1334525 11.25 0.000 1.239118 1.762242
_Ipa2Xhi1 | -1.196095 .3314759 -3.61 0.000 -1.845775 -.5464137
_Ipa3Xhi1 | -.4518947 .2790681 -1.62 0.105 -.9988581 .0950686
_cons | -.6686717 .0667263 -10.02 0.000 -.7994527 -.5378906
------------------------------------------------------------------------------
describe _Ipared_2 _Ipared_3 _Ihicred_1 _Ipa2Xhi1 _Ipa3Xhi1
storage display value
variable name type format label variable label
-------------------------------------------------------------------------------
_Ipared_2 double %10.0g pared(2 vs. 1)
_Ipared_3 double %10.0g pared(3 vs. 2-)
_Ihicred_1 double %10.0g hicred(1 vs. 0)
_Ipa2Xhi1 float %9.0g pared(2 vs. 1)*hicred(1 vs. 0)
_Ipa3Xhi1 float %9.0g pared(3 vs. 2-)*hicred(1 vs. 0)
test _Ipa2Xhi1 _Ipa3Xhi1
( 1) _Ipa2Xhi1 = 0
( 2) _Ipa3Xhi1 = 0
chi2( 2) = 14.67
Prob > chi2 = 0.0007
test _Ipared_2 _Ipared_3
( 1) _Ipared_2 = 0
( 2) _Ipared_3 = 0
chi2( 2) = 0.59
Prob > chi2 = 0.7445

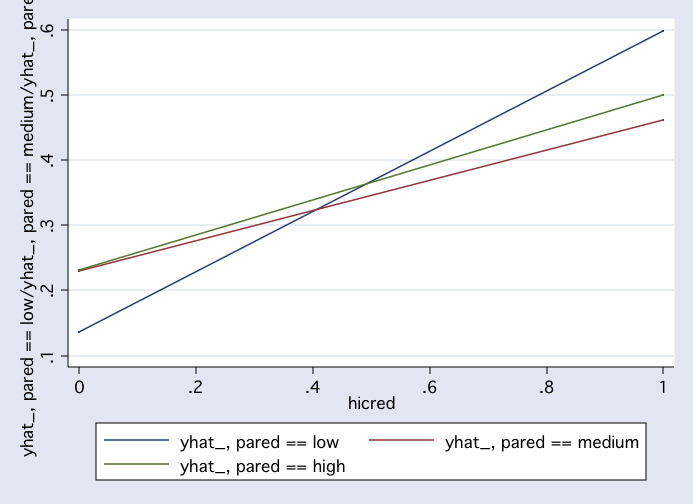

postgr3 hicred, by(pared)
xi3: logit hiqual r.pared@i.hicred, nolog
r.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
i.hicred _Ihicred_0-1 (naturally coded; _Ihicred_0 omitted)
Logit estimates Number of obs = 1200
LR chi2(5) = 149.43
Prob > chi2 = 0.0000
Log likelihood = -682.71264 Pseudo R2 = 0.0986
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ihicred_1 | 1.50068 .1334525 11.25 0.000 1.239118 1.762242
_Ipa2Whi0 | .6427879 .2335393 2.75 0.006 .1850593 1.100517
_Ipa2Whi1 | -.5533066 .2352354 -2.35 0.019 -1.014359 -.0922538
_Ipa3Whi0 | .3293921 .2078743 1.58 0.113 -.0780341 .7368183
_Ipa3Whi1 | -.1225026 .1861914 -0.66 0.511 -.4874311 .2424259
_cons | -1.419012 .0966765 -14.68 0.000 -1.608494 -1.229529
------------------------------------------------------------------------------
describe _Ihicred_1 _Ipa2Whi0 _Ipa2Whi1 _Ipa3Whi0 _Ipa3Whi1
storage display value
variable name type format label variable label
-------------------------------------------------------------------------------
_Ihicred_1 byte %8.0g hicred=1
_Ipa2Whi0 double %10.0g pared(2 vs. 1) @ hicred==0
_Ipa2Whi1 double %10.0g pared(2 vs. 1) @ hicred==1
_Ipa3Whi0 double %10.0g pared(3 vs. 2-) @ hicred==0
_Ipa3Whi1 double %10.0g pared(3 vs. 2-) @ hicred==1
/* test of simple main effect of pared at hicred=0 */
test _Ipa1Whi0 _Ipa2Whi0
( 1) _Ipa1Whi0 = 0
( 2) _Ipa2Whi0 = 0
chi2( 2) = 9.30
Prob > chi2 = 0.0095
/* test of simple main effect of pared at hicred=1 */
test _Ipa1Whi1 _Ipa2Whi1
( 1) _Ipa1Whi1 = 0
( 2) _Ipa2Whi1 = 0
chi2( 2) = 5.74
Prob > chi2 = 0.0568
Example 2: Dichotomous and Continuous
use http://www.ats.ucla.edu/stat/data/hsbdemo, clear
generate honors = write>=60
tab1 honors female
-> tabulation of honors
honors | Freq. Percent Cum.
------------+-----------------------------------
0 | 147 73.50 73.50
1 | 53 26.50 100.00
------------+-----------------------------------
Total | 200 100.00
-> tabulation of female
female | Freq. Percent Cum.
------------+-----------------------------------
male | 91 45.50 45.50
female | 109 54.50 100.00
------------+-----------------------------------
Total | 200 100.00
xi3: logit honors i.female socst, nolog
i.female _Ifemale_0-1 (naturally coded; _Ifemale_0 omitted)
Logit estimates Number of obs = 200
LR chi2(2) = 38.63
Prob > chi2 = 0.0000
Log likelihood = -96.330397 Pseudo R2 = 0.1670
------------------------------------------------------------------------------
honors | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ifemale_1 | .7181606 .3665387 1.96 0.050 -.000242 1.436563
socst | .1093791 .021713 5.04 0.000 .0668224 .1519358
_cons | -7.465113 1.298135 -5.75 0.000 -10.00941 -4.920815
------------------------------------------------------------------------------
estimates store M1

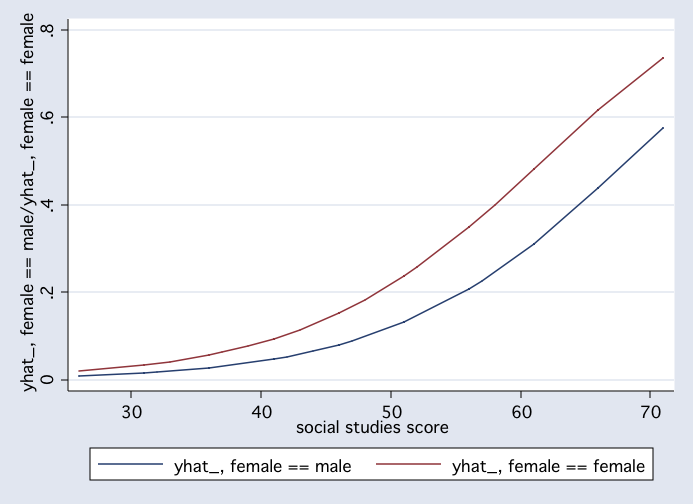

postgr3 socst, by(female)
xi3: logit honors i.female*socst, nolog
i.female _Ifemale_0-1 (naturally coded; _Ifemale_0 omitted)
Logit estimates Number of obs = 200
LR chi2(3) = 42.54
Prob > chi2 = 0.0000
Log likelihood = -94.374049 Pseudo R2 = 0.1839
------------------------------------------------------------------------------
honors | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ifemale_1 | 6.406617 3.162907 2.03 0.043 .2074326 12.6058
socst | .1774272 .0468625 3.79 0.000 .0855783 .269276
_Ife1Xso | -.0974514 .0529988 -1.84 0.066 -.2013271 .0064244
_cons | -11.5045 2.838139 -4.05 0.000 -17.06715 -5.941854
------------------------------------------------------------------------------

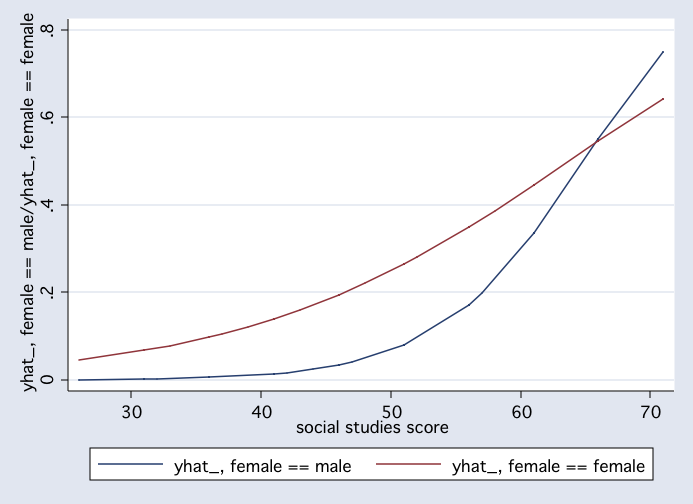

postgr3 socst, by(female) /* postgr available for UCLA ATS */
lrtest M1
likelihood-ratio test LR chi2(1) = 3.91
(Assumption: M1 nested in .) Prob > chi2 = 0.0479
logit honors socst if female==0
Logit estimates Number of obs = 91
LR chi2(1) = 26.03
Prob > chi2 = 0.0000
Log likelihood = -32.242503 Pseudo R2 = 0.2876
------------------------------------------------------------------------------
honors | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
socst | .1774272 .0468627 3.79 0.000 .0855779 .2692764
_cons | -11.5045 2.838151 -4.05 0.000 -17.06718 -5.941829
------------------------------------------------------------------------------
logit, or /* header deleted */
Logit estimates Number of obs = 91
LR chi2(1) = 26.03
Prob > chi2 = 0.0000
Log likelihood = -32.242503 Pseudo R2 = 0.2876
------------------------------------------------------------------------------
honors | Odds Ratio Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
socst | 1.194141 .0559607 3.79 0.000 1.089346 1.309017
------------------------------------------------------------------------------
logit honors socst if female==1
Logit estimates Number of obs = 109
LR chi2(1) = 12.57
Prob > chi2 = 0.0004
Log likelihood = -62.131547 Pseudo R2 = 0.0919
------------------------------------------------------------------------------
honors | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
socst | .0799758 .0247537 3.23 0.001 .0314595 .1284921
_cons | -5.097887 1.396009 -3.65 0.000 -7.834013 -2.36176
------------------------------------------------------------------------------
logit, or /* header deleted */
------------------------------------------------------------------------------
honors | Odds Ratio Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
socst | 1.083261 .0268147 3.23 0.001 1.03196 1.137112
------------------------------------------------------------------------------
/* rerun logit model with interaction */
quietly xi3: logit honors i.female*socst
listcoef
logit (N=200): Factor Change in Odds
Odds of: 1 vs 0
----------------------------------------------------------------------
honors | b z P>|z| e^b e^bStdX SDofX
-------------+--------------------------------------------------------
_Ifemale_1 | 6.40662 2.026 0.043 605.8408 24.4912 0.4992
socst | 0.17743 3.786 0.000 1.1941 6.7182 10.7358
_Ife1Xso | -0.09745 -1.839 0.066 0.9071 0.0688 27.4723
----------------------------------------------------------------------
listcoef, percent
logit (N=200): Percentage Change in Odds
Odds of: 1 vs 0
----------------------------------------------------------------------
honors | b z P>|z| % %StdX SDofX
-------------+--------------------------------------------------------
_Ifemale_1 | 6.40662 2.026 0.043 60484.1 2349.1 0.4992
socst | 0.17743 3.786 0.000 19.4 571.8 10.7358
_Ife1Xso | -0.09745 -1.839 0.066 -9.3 -93.1 27.4723
----------------------------------------------------------------------
prchange
min->max 0->1 -+1/2 -+sd/2 MargEfct
_Ifemale_1 0.7940 0.7940 0.8339 0.4763 0.9402
socst 0.8529 0.0000 0.0260 0.2831 0.0260
_Ife1Xso -0.7798 -0.0170 -0.0143 -0.3995 -0.0143
0 1
Pr(y|x) 0.8213 0.1787
_Ifemale_1 socst _Ife1Xso
x= .545 52.405 28.84
sd(x)= .49922 10.7358 27.4723
predict p1
(option p assumed; Pr(honors))
table socst female, cont(mean p1)
------------------------------
social |
studies | female
score | male female
----------+-------------------
26 | .0010155 .0465964
31 | .0024621 .0679486
32 | .0029387
33 | .0788058
36 | .0059575 .0980787
37 | .1053843
39 | .1214437
41 | .0143438 .1395686
42 | .017081
43 | .1599062
44 | .024181
46 | .03413 .1948186
47 | .0404877
48 | .221138
51 | .0790214 .2651989
52 | .2810734
56 | .1724187 .3499542
57 | .1992235
58 | .3871546
61 | .3359387 .4453785
66 | .5512419 .5450073
71 | .7489135 .6411588
------------------------------
summarize socst
Variable | Obs Mean Std. Dev. Min Max
-------------+-----------------------------------------------------
socst | 200 52.405 10.73579 26 71
generate csoc = socst-r(mean)
xi3: logit honors i.female*csoc, nolog
i.female _Ifemale_0-1 (naturally coded; _Ifemale_0 omitted)
Logit estimates Number of obs = 200
LR chi2(3) = 42.54
Prob > chi2 = 0.0000
Log likelihood = -94.374049 Pseudo R2 = 0.1839
------------------------------------------------------------------------------
honors | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ifemale_1 | 1.299679 .5328923 2.44 0.015 .2552294 2.344129
csoc | .1774272 .0468625 3.79 0.000 .0855783 .269276
_Ife1Xcs | -.0974514 .0529988 -1.84 0.066 -.2013271 .0064244
_cons | -2.206433 .4795982 -4.60 0.000 -3.146428 -1.266437
------------------------------------------------------------------------------
listcoef
logit (N=200): Factor Change in Odds
Odds of: 1 vs 0
----------------------------------------------------------------------
honors | b z P>|z| e^b e^bStdX SDofX
-------------+--------------------------------------------------------
_Ifemale_1 | 1.29968 2.439 0.015 3.6681 1.9133 0.4992
csoc | 0.17743 3.786 0.000 1.1941 6.7182 10.7358
_Ife1Xcs | -0.09745 -1.839 0.066 0.9071 0.4794 7.5439
----------------------------------------------------------------------
Example 3: Categorical and Continuous
use http://www.philender.com/courses/data/apilog, clear
summarize meals
Variable | Obs Mean Std. Dev. Min Max
-------------+-----------------------------------------------------
meals | 1200 52.15 31.23653 0 100
generate mealcent = meals-r(mean)
univar meals mealcent
-------------- Quantiles --------------
Variable n Mean S.D. Min .25 Mdn .75 Max
-------------------------------------------------------------------------------
meals 1200 52.15 31.24 0.00 24.00 53.00 80.00 100.00
mealcent 1200 -0.00 31.24 -52.15 -28.15 0.85 27.85 47.85
-------------------------------------------------------------------------------
codebook pared
pared -------------------------------------------- Parents Education, Lo Med Hi
type: numeric (byte)
label: lmh
range: [1,3] units: 1
unique values: 3 coded missing: 0 / 1200
tabulation: Freq. Numeric Label
397 1 low
421 2 medium
382 3 high
xi3: logit hiqual i.pared meals, nolog
i.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
Logit estimates Number of obs = 1200
LR chi2(3) = 897.02
Prob > chi2 = 0.0000
Log likelihood = -308.91779 Pseudo R2 = 0.5921
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ipared_2 | -.2201914 .3091861 -0.71 0.476 -.826185 .3858022
_Ipared_3 | -.6882049 .2975907 -2.31 0.021 -1.271472 -.1049379
meals | -.1090413 .0064922 -16.80 0.000 -.1217658 -.0963168
_cons | 3.984179 .3452765 11.54 0.000 3.307449 4.660908
------------------------------------------------------------------------------
estimates store M1

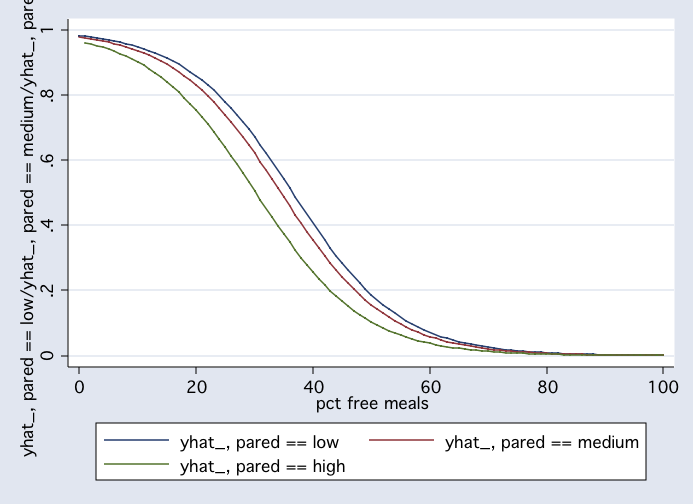

postgr3 meals, by(pared)
xi3: logit hiqual meals, nolog
Logit estimates Number of obs = 1200
LR chi2(1) = 889.70
Prob > chi2 = 0.0000
Log likelihood = -312.57619 Pseudo R2 = 0.5873
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
meals | -.1079217 .0064131 -16.83 0.000 -.1204911 -.0953523
_cons | 3.536434 .2353569 15.03 0.000 3.075143 3.997725
------------------------------------------------------------------------------
lrtest M1
likelihood-ratio test LR chi2(2) = 7.32
(Assumption: . nested in M1) Prob > chi2 = 0.0258
xi3: logit hiqual i.pared mealcent, nolog
i.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
Logit estimates Number of obs = 1200
LR chi2(3) = 897.02
Prob > chi2 = 0.0000
Log likelihood = -308.91779 Pseudo R2 = 0.5921
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ipared_2 | -.2201914 .3091861 -0.71 0.476 -.826185 .3858022
_Ipared_3 | -.6882049 .2975907 -2.31 0.021 -1.271472 -.1049379
mealcent | -.1090413 .0064922 -16.80 0.000 -.1217658 -.0963168
_cons | -1.704234 .2784723 -6.12 0.000 -2.250029 -1.158438
------------------------------------------------------------------------------
xi3: logit hiqual r.pared mealcent, nolog
r.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
Logit estimates Number of obs = 1200
LR chi2(3) = 897.02
Prob > chi2 = 0.0000
Log likelihood = -308.91779 Pseudo R2 = 0.5921
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ipared_2 | -.2201914 .3091861 -0.71 0.476 -.826185 .3858022
_Ipared_3 | -.5781091 .2159999 -2.68 0.007 -1.001461 -.154757
mealcent | -.1090413 .0064922 -16.80 0.000 -.1217658 -.0963168
_cons | -2.007032 .1630359 -12.31 0.000 -2.326577 -1.687488
------------------------------------------------------------------------------
estimates store M2
describe _Ipared_2 _Ipared_3
storage display value
variable name type format label variable label
-------------------------------------------------------------------------------
_Ipared_2 float %9.0g pared(2 vs. 1)
_Ipared_3 float %9.0g pared(3 vs. 2-)
test _Ipared_2 _Ipared_3
( 1) _Ipared_2 = 0.0
( 2) _Ipared_3 = 0.0
chi2( 2) = 7.18
Prob > chi2 = 0.0276
xi3: logit hiqual r.pared*mealcent, nolog
r.pared _Ipared_1-3 (naturally coded; _Ipared_1 omitted)
Logit estimates Number of obs = 1200
LR chi2(5) = 907.67
Prob > chi2 = 0.0000
Log likelihood = -303.59105 Pseudo R2 = 0.5992
------------------------------------------------------------------------------
hiqual | Coef. Std. Err. z P>|z| [95% Conf. Interval]
-------------+----------------------------------------------------------------
_Ipared_2 | .4336538 .5717637 0.76 0.448 -.6869825 1.55429
_Ipared_3 | .2808648 .3667777 0.77 0.444 -.4380063 .9997359
mealcent | -.1180247 .0088005 -13.41 0.000 -.1352733 -.1007761
_Ipa2Xme | .0369404 .0247695 1.49 0.136 -.0116069 .0854877
_Ipa3Xme | .0454167 .0153912 2.95 0.003 .0152506 .0755829
_cons | -2.138486 .2054024 -10.41 0.000 -2.541068 -1.735905
------------------------------------------------------------------------------
describe _Ipa2Xme _Ipa3Xme
storage display value
variable name type format label variable label
-------------------------------------------------------------------------------
_Ipa2Xme float %9.0g pared(2 vs. 1)*mealcent
_Ipa3Xme float %9.0g pared(3 vs. 2-)*mealcent

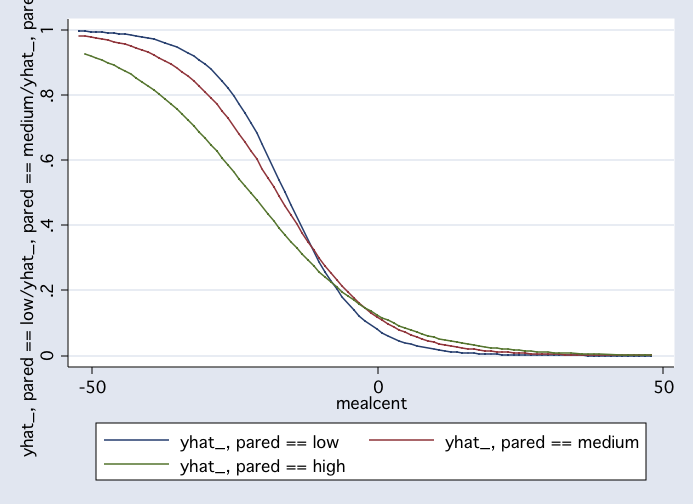

postgr3 mealcen, by(pared)
lrtest M2
likelihood-ratio test LR chi2(2) = 10.65
(Assumption: M2 nested in .) Prob > chi2 = 0.0049
Categorical Data Analysis Course
Phil Ender
